Making
Visions Actionable
Pejman Makhfi
Certified Scrum Master
VP of Solution, Savvion Inc.
11/29/2008
Download in Presentation format
- Development can’t
estimate and commit on what they do not fully understand
- Business can’t
freeze scope for a long time and can’t sign-off on specs they
do not fully understand
- As users see the
product, they come up with new ideas
- Making incremental
progress, instead of trying to map out an obstacle course that has never
been navigated before!
- Scrum is an iterative
incremental process of Agile software development, in contrast to waterfall
approach. It is an empirical approach based in process control theory.
- Designed to address
changing market demands, evolving requirements, miscommunication and
misinterpretation.
- Originally used
for software project management, it is now gradually penetrating into
other domains.
- All activities
are time boxed
- Requirements are
delivered in form of User Stories (vision driven) For example: “A
consumer can upload and play videos on the website”. Details are
added during the course of the project to clarify ambiguity.
- Teams are cross
functional including all skills needed to meet the Sprint goal. Ideally
with 5-9 members and self-organized.
- Projects are divided
into manageable iterations (15 to 30 days cycles) - Sprints
- Work is broken
down into smaller activities than the estimating threshold (2 days maximum)
– Work Items
- Some “business
value” is delivered at the end of each iteration
Three Roles
- Product Owner
- ScrumMaster
- Team
Three Meetings
- Sprint Planning
- Daily Standup Scrum
- Retrospective
Three Artifacts
- Product/Roadmap Backlog
- Sprint Backlog
- Burn down Chart
Source:
SPRiNT iT
- Team meets with
product owner to discuss Product Backlog Items and assign a relative
size value to each.
- Product Owner then
prioritizes and discuss with the team the next product increment, as
a potentially shippable product.
- Team then breaks
down sprint items into a list of small, concrete deliverables (work
items) and estimate effort for each.
- At the end of the
sprint the team “shows off” what they’ve done to product
owner and other Stakeholders.
- Team meets with
ScrumMaster to inspect and adapt on their process.
- Stories are a way
to communicate expectations.
- There are User
Stories, Defects and Technical Story Not all requirements for new development
represent user-facing features, but do represent significant work that
must be done. We call these non-functional requirements "Technical
Stories.“
- Progress is demonstrated
by delivering tested and integrated work that implements a story.
- Scrum teams like
to see stories that can be estimated correctly and scheduled in one
iteration.
- Each story has
a Description, Business Value (BV) as a relative value (e.g. 1-10 range),
Story Point (SP) reflecting the relative estimate of effort (e.g. 1-10
range), Definition of Done (DoD) as an instruction on how to test or
demo (~ completion criteria)
- Distribute 100
points for BV between stories and you get ROI = BV/SP
- Format:
As an <Actor/Role> I want to <Action/Function> so that <Goal/Benefit>
- An Epic is a large
story or collection of related stories.
- Some examples of
Epics are:
- We’re going to need to train all our users on this new release
- As a <tourist>, I want to <fly to Catalina for the weekend>
- As a HR manager I want an internal resume tracking system to simplify my work
- We want to move our Internet Data Center to another platform
- A "Work In
Progress"(WIP) limit of active epics at any given time should be
setup
- The product backlog
has four qualities: It is detailed appropriately, estimated, emergent,
and prioritized, making it DEEP
- “Detailed appropriately” means items on top of Backlog should be clearer and have a more detailed specification.
- Items that span
over 1 iteration are called Epic
- It may take a
few sprints to break down and refine a large Epic until the resulting
stories are ready to be pulled into the sprint. (progressive decomposition)
- The Sprint Queue
is a subset of Product Backlog Items (Stories and Defects) planned for
implementation in a Sprint. The items are ranked in the desired order
of implementation to reflects both the urgency (value) of the item,
and any potential dependencies that exist between items.
- Ideally each Sprint
should have a Theme or Goal. And what features are required from the
Product Backlog to support the goal.
- The Sprint turn
the Product Backlog for one Sprint into an increment of potentially
shippable product.
- Each n
Sprints will result to a formal Release
- Sprint Items are
broken down into Work items. They are decompose and ranked in way that
takes both customer priority and technical constraints into consideration.
- Work items are
tasks that
- can be done by one person
- can be done in less that 10 “work hours”
- Detailed task-level
estimations are created in the sprint planning meeting. Individual work
items and their estimates are captured in the Work Queue.
- Daily Scrum refers
to a short (15 minutes) daily standup meeting to review progress status
and any potential problems preventing team members from accomplishing
their goal. ScrumMaster will then facilitate resolution of these impediments
outside the context of the Daily Scrum.
- Questions to answer
by each member:
- What did you do yesterday?
I started writing the code to load information into the database.
- What are you going to do today ?
I'm going to handle some of the data issues that cropped up yesterday.
- Do you have any blockers?
I have no blockers.
- For purpose of
achieving the same with distributed teams, the queuing/ticketing solution
should be configured to offer automated reports for 1st and 2nd items.
Blockers are shared with the team via email by each member.
The sprint burn down chart is a publicly displayed chart showing remaining work in the sprint, based on initial WI estimates.
Velocity is a measurement of how much the team actually gets done in an iteration (and not what was planned)
- Each iteration implements the highest priority items
- New Items are prioritized and added to the stack
- Backlog can be reprioritized at any time
- Items can be removed at any time
- Items should have DoD (Definition of Done)
- For some items it might be best to pre-assign
- A percentage of capacity will be allocated for in-flight bugs & unexpected
- There should be a limit to number of WIPs (Work In Progress)
- Estimates might be increased by a Drag Factor depending on the team age and their knowledge of technology and project domain.
- Iterative and
incremental is not enough to be agile. It is about adjustment and re-planning
- Effective work
capacity to be estimated at 30 hours/week/person
- Every activity
greater than 1 hour has to be captured in the system
- Maximum effort
per WI can be 10 hours, otherwise break down
- Estimates are
captured at WI level and rolled up to each Story
- For integration
and Items that need testing beyond unit test there will be explicit
WIs
- The WorkQueue
has to be emptied before the Sprint end. That is a Team responsibility
and not of any individual member, regardless of task type.
Apendix

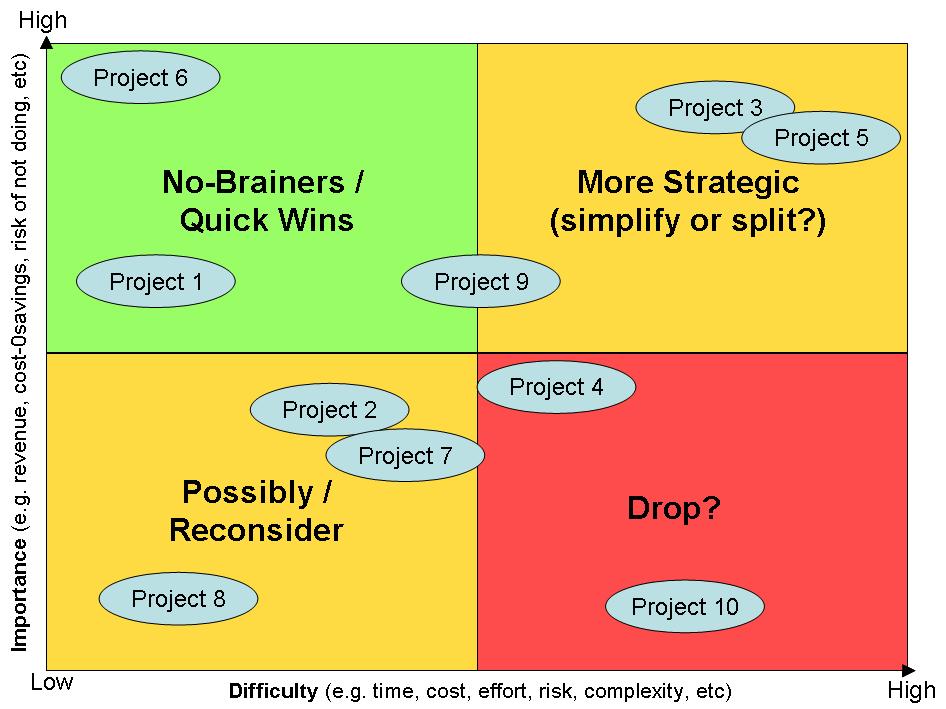

Prioritization is difficult with complex and conflicting objectives or when benefits are intangible.
In that case use the $35 rule!
Distribute $35 between features, according to their business values
At design level requirements should be translated to following aspects:
- Usage Model (Use cases and application logic)
- Data Model (entities and relationships)
- Interaction Models (UI/Human and API/System interfaces)
Without automated build and tests it is very difficult to work in short development cycles. Tools to consider:
- jUnit / jsUnit
- Selenium systems test
- Cucumber
- BrowserMob load tests
- ANT auto build & deployment
